Ruifa Modular House Ruifa Modular House

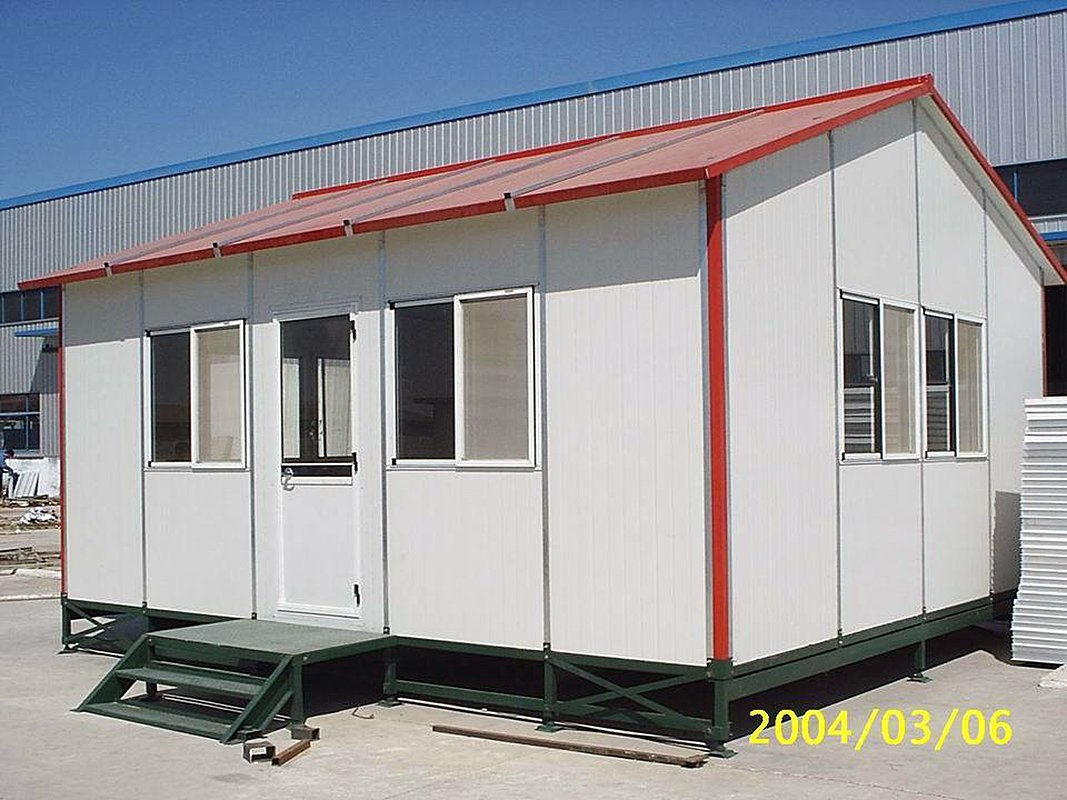

Prefabricated Steel Structure Prefab House, Labor Camp, Canteen House

Customization: Available
After-sales Service: 30 Year Limited Warranty
Window: PVC, Aluminum Sliding Window

Product Description

📋 Basic Info.
Model NO.
963
Wall/Roof Insulation
Fiber Glass, Rock Wool, EPS, PU Sandwich Panel
Material
Steel Structure
Usage
Warehouse, Villa, Dormitories, Temporary Offices, Workshop
Certification
ISO, CE, SGS, BV
Warranty
30 Year Limited Warranty
Transport Package
Pallet
Origin
China
HS Code
940690
🏠 Product Description
Prefabricated Steel Structure Prefab House
Technical Parameter of Standard Prefabricated House
Wind resistance Grade 11 (wind speed ≤ 111.5km/h)
Earthquake resistance Grade 7
Live load capacity of roofing 0.5kn/m2
First floor load capacity 150 kg/m2
Installation Efficiency Four skilled workers can finish 100sqm in 8 hours
Service Support Installation supervision and training available
🛠️ Material Specifications
Item Material Introduction
Steel frame Square Steel Tube and Channel steel Roof Truss; Painted or pre-galvanized
Steel Purlin C-section Channel steel
Insulation Sandwich panel (50mm, 75mm or 100mm); EPS, Fiberglass or Rock wool
Decoration Ceiling: Gypsum Board or PVC Board; Floor: Plywood + PVC leather
Door & Windows Light steel door; PVC frame sliding window with glass and screen

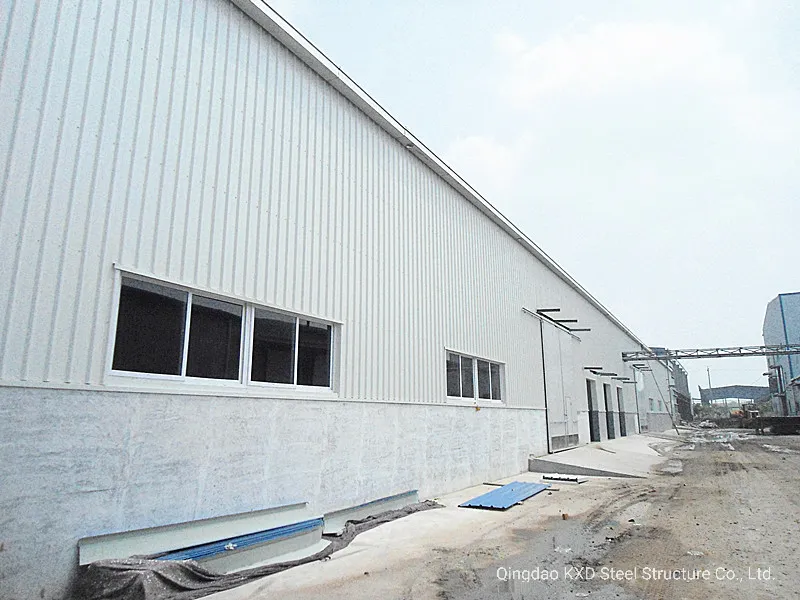

Prefab House Construction

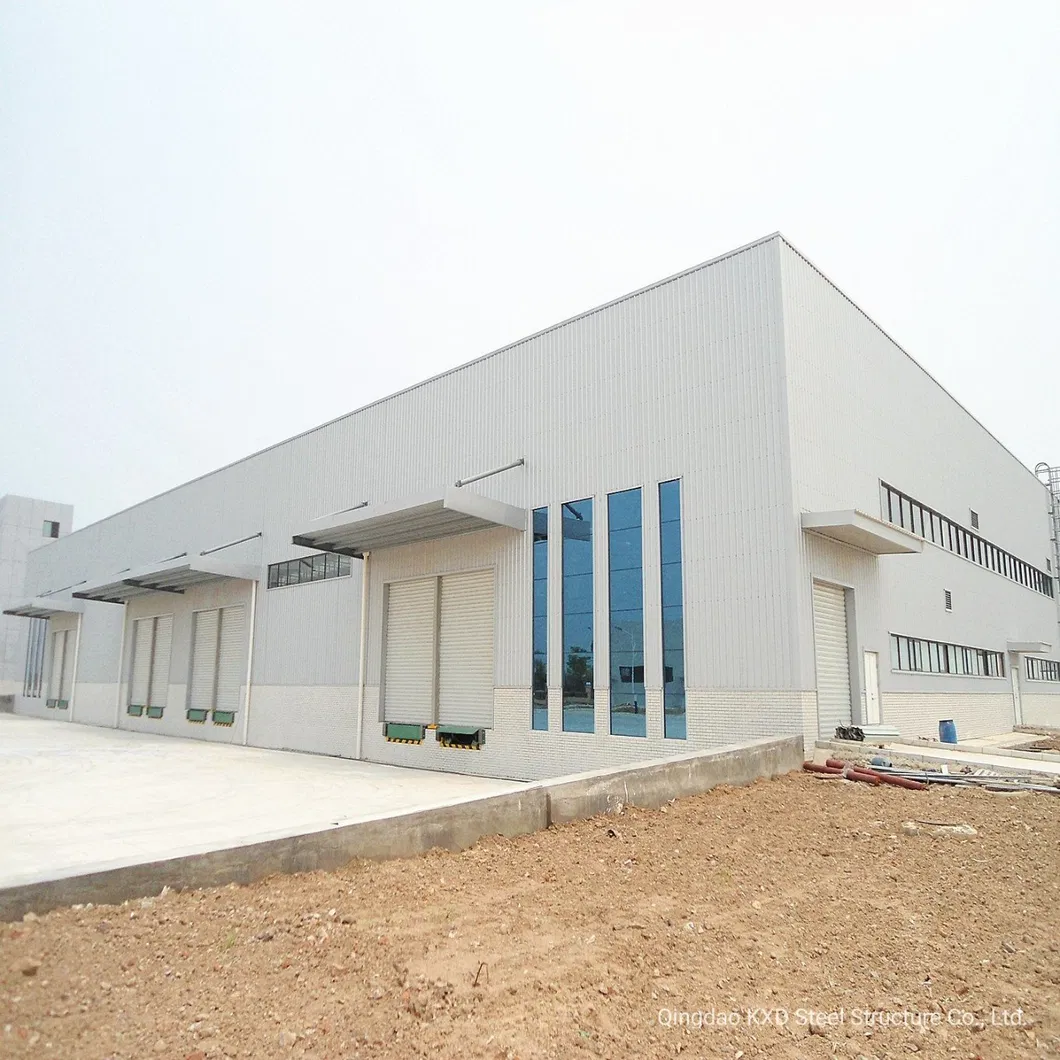

Steel Structure Detail
📊 Technical Specification
Classify Name Specification & Parameter
Type Standardization Custom made products, design and manufacture according to client's demand
Specification Length/Width Length: No limited; Width: ≤ 11m
Height ≤ 3.0m
Roof slope Double slope, 1: 6 - 1: 4
Standard Post Outdoor post is square steel pipe (Q235), painted surface
Roof Beam/Purlin Welded square steel pipe with rust-proof process
Wall/Roof Board 75mm~150mm thickness color steel sandwich panel
Roof Tiles V35-125-350 color steel tiles (Blue or Red)
📸 Project Gallery

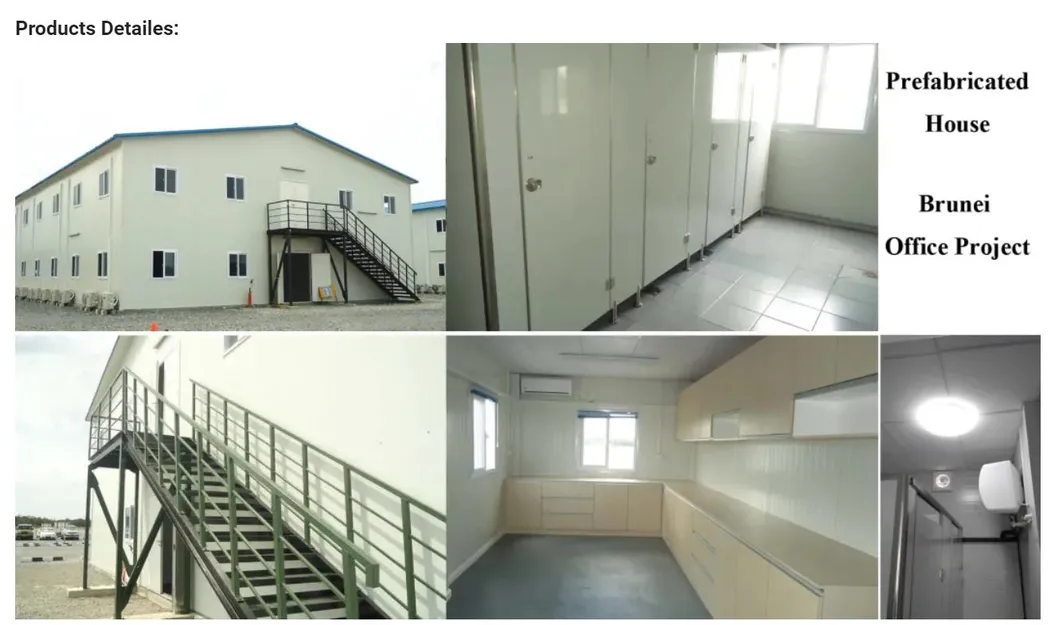

Layout Plan

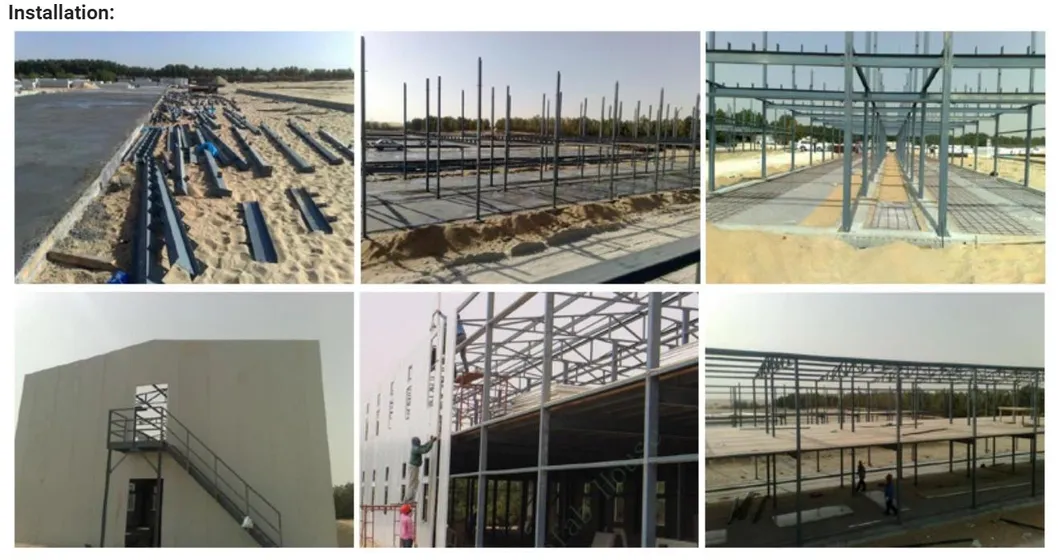

Site Installation

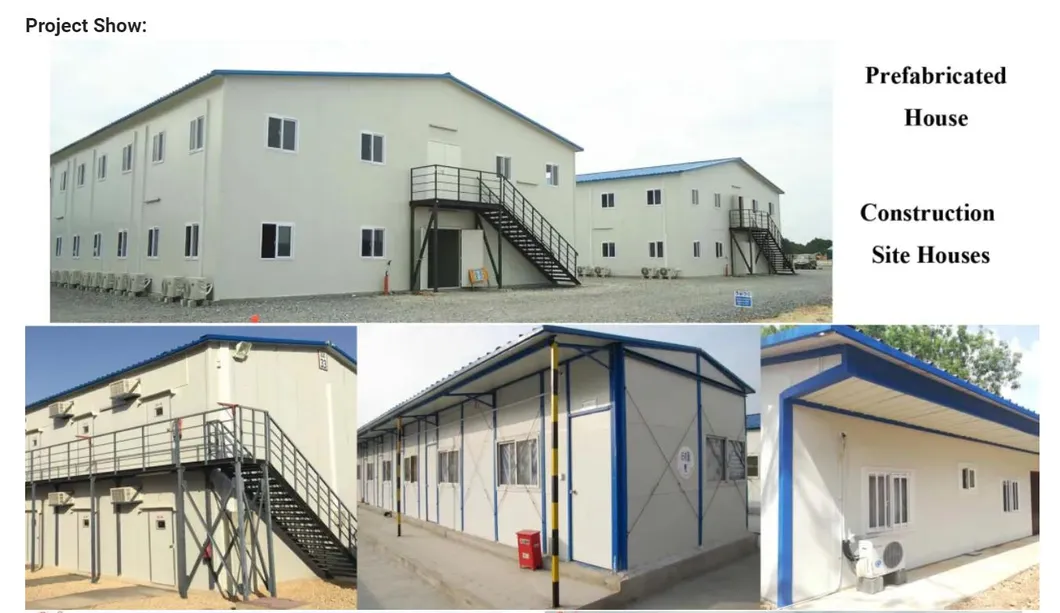

Finished Project
Key Advantages
Advantage Overview
  • Faster installation and lower construction costs
  • Large clear spans up to 100m without internal columns
  • Energy efficient roof and wall systems
  • Weather-tight seals for long-term maintenance-free exteriors
  • High flexibility in building dimensions and expansion
  • Dismantled and relocated easily with high repeating utilization
Frequently Asked Questions
How long is the warranty for this steel structure house?
The product comes with a 30-year limited warranty, ensuring long-term durability and structural integrity.
What is the wind and earthquake resistance rating?
The house is designed to withstand Grade 11 winds (up to 111.5km/h) and Grade 7 earthquake intensity.
How fast can the house be installed?
Installation is highly efficient; four skilled workers can typically complete the installation of a 100sqm light steel structure in about 8 hours.
What types of insulation materials are available?
You can choose from Fiber Glass, Rock Wool, EPS, or PU Sandwich Panels with thicknesses ranging from 50mm to 150mm depending on your climate needs.
Can the house be customized to specific dimensions?
Yes, these are custom-made products. We design and manufacture according to the client's specific demands for length, width, and height.
What are the primary uses for these prefabricated buildings?
They are versatile and ideal for use as warehouses, villas, dormitories, temporary offices, workshops, labor camps, and canteens.
