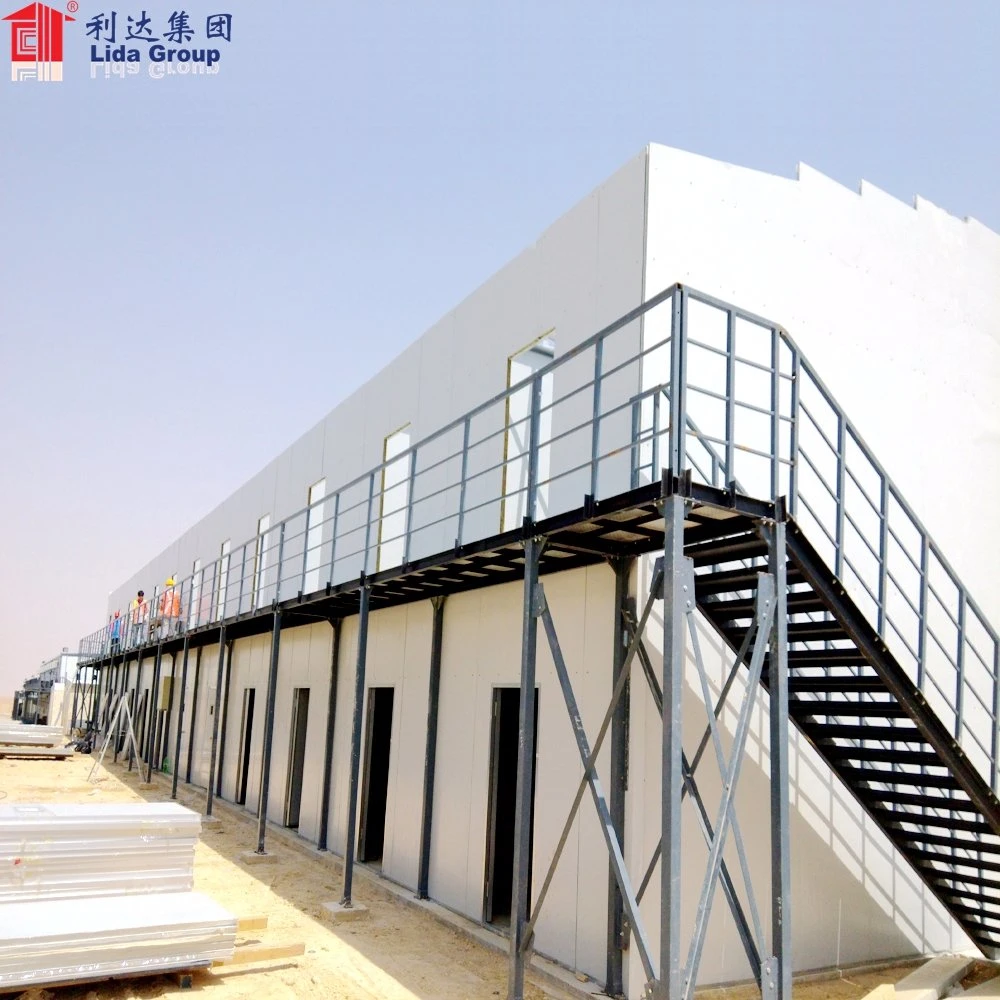

Prefab Steel Structure School Building Prefabricated Students Classroom

Still deciding? Get samples of $ !

Request Sample

Send Inquiry

Product Description

Technical Specifications

Model NO.

Steel Structure

Steel Column/Beam

H Section Steel

Installation

Drawing and Engineer Supervision

Type

H-Section Steel

Standard

GB, BS

Forming

Hot-Rolled Steel

Connection

Welded Connection

Steel Grade

Q235 / Q345 High-Strength

Warranty

1 Year Guarantee

Capacity

50,000 SQM Per Month

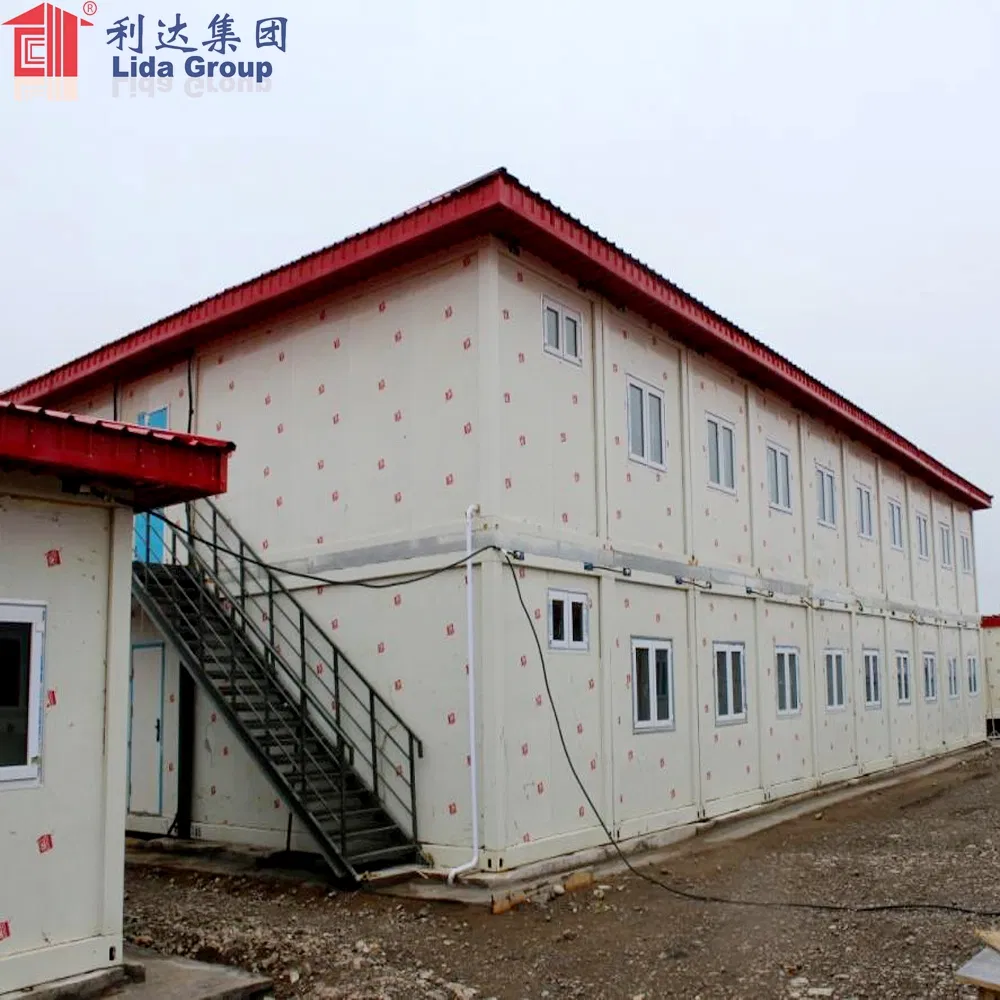

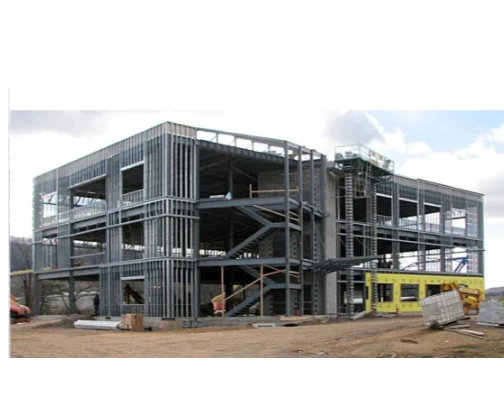

Prefab Steel Structure School Building

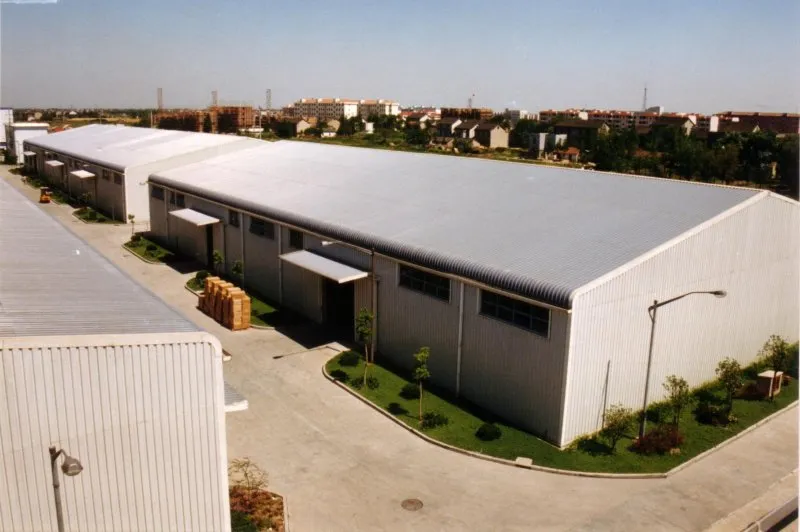

Light steel structure building is a modern architectural system formed by a main steel framework linking H-section, C-section, Z-section, or U-section steel components. This system utilizes high-quality panels for walls and roofs, integrated with specialized window and door systems. It is widely applied in large factories, warehouses, educational buildings, stadiums, and bridges.

Key Characteristics

Wide Span: Available in single or multiple spans with a maximum clear distance of 36m without middle columns.
Cost-Effective: Competitive unit pricing ranging from USD35 to USD70 per square meter.
Rapid Construction: Engineered for fast assembly and easy installation.
Durability: Long-term service life exceeding 50 years.
Resilience: Features earthquake resistance, waterproofing, and energy-saving properties.

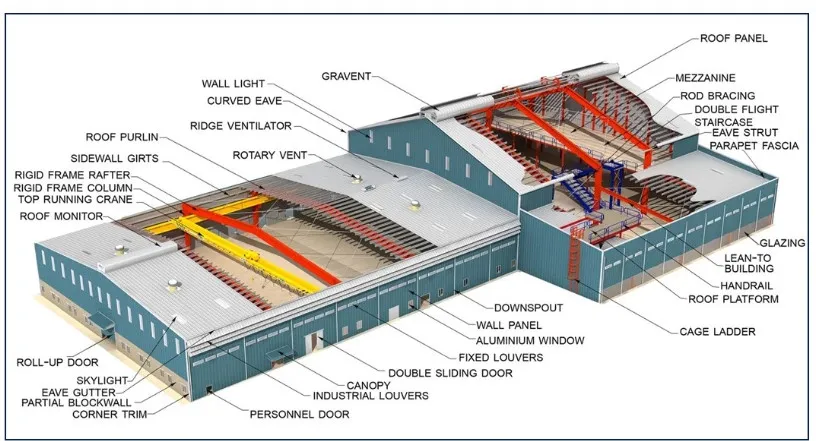

Main Component Details

Category	Component	Specification
Main Frame	H Section Steel	Q345 Steel, 8mm/10mm (Galvanized/Painted)
	Cross Support	Φ20 Steel Q235, Galvanized
	Belt Bar	Φ89*3 Steel Q235, Galvanized
	Bolts	High Strength / Galvanized Bolts
Roof System	Purlin	C160602 Steel Q235, Galvanized
	Panel	Sandwich Panel or Corrugated Steel Sheet
	Drainage	Steel Gutter & Φ110 PVC Rainspout
Wall System	Wall Panel	Sandwich Panel or Corrugated Steel Sheet
Wall System	Openings	PVC/Aluminium Alloy Windows & Sliding/Rolling Doors

Design & Quote Information

To provide an accurate drawing and quotation, please prepare the following data:

Location: Project site (Country/Area).
Dimensions: Length * Width * Height.
Environmental Loads: Wind speed (km/h) and Snow load (mm).
Seismic Level: Anti-earthquake requirements.

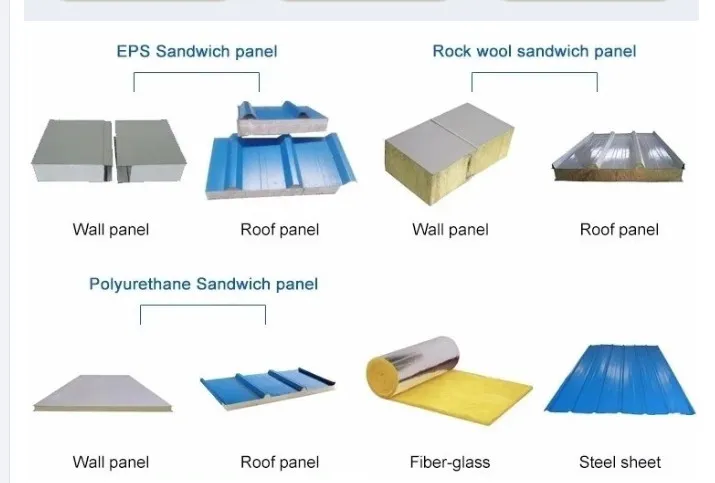

Insulation: Request for EPS, Fiberglass wool, Rockwool, or PU sandwich panels.
Crane Requirements: Lifting capacity (tons) and height (m) if needed.

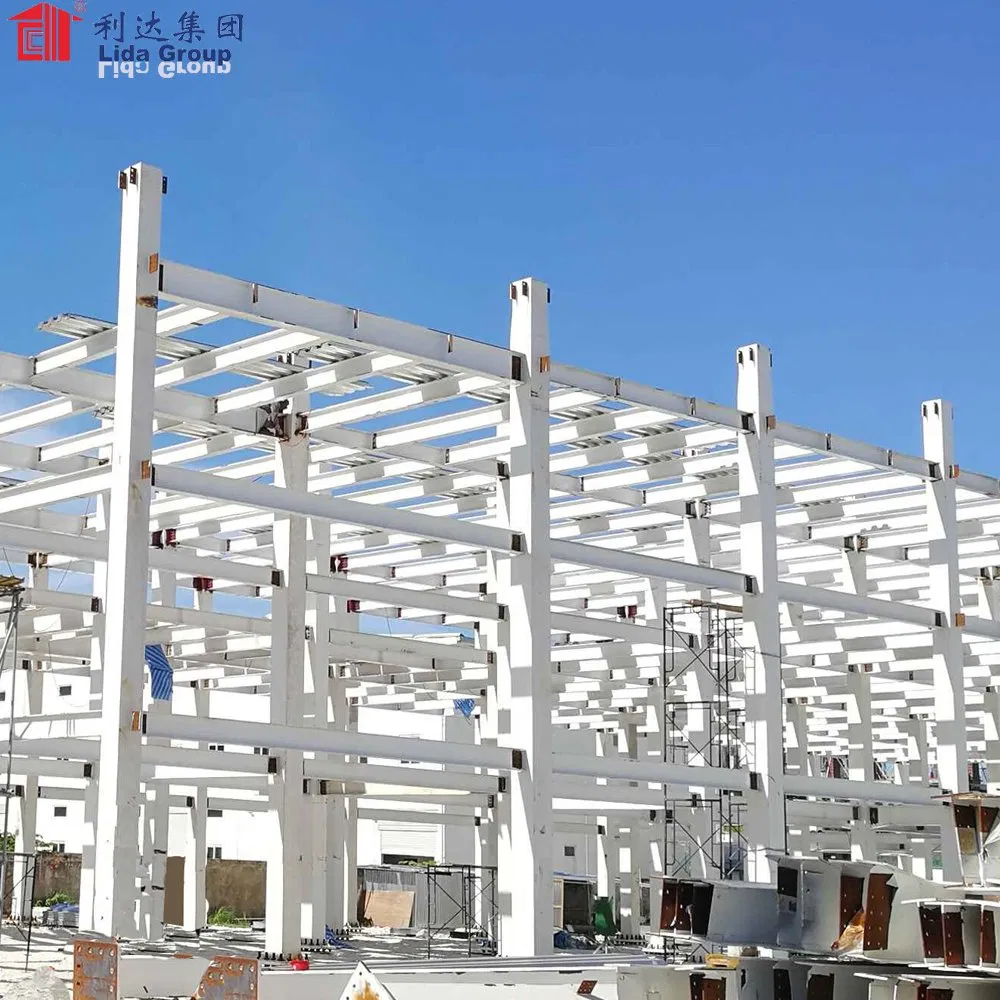

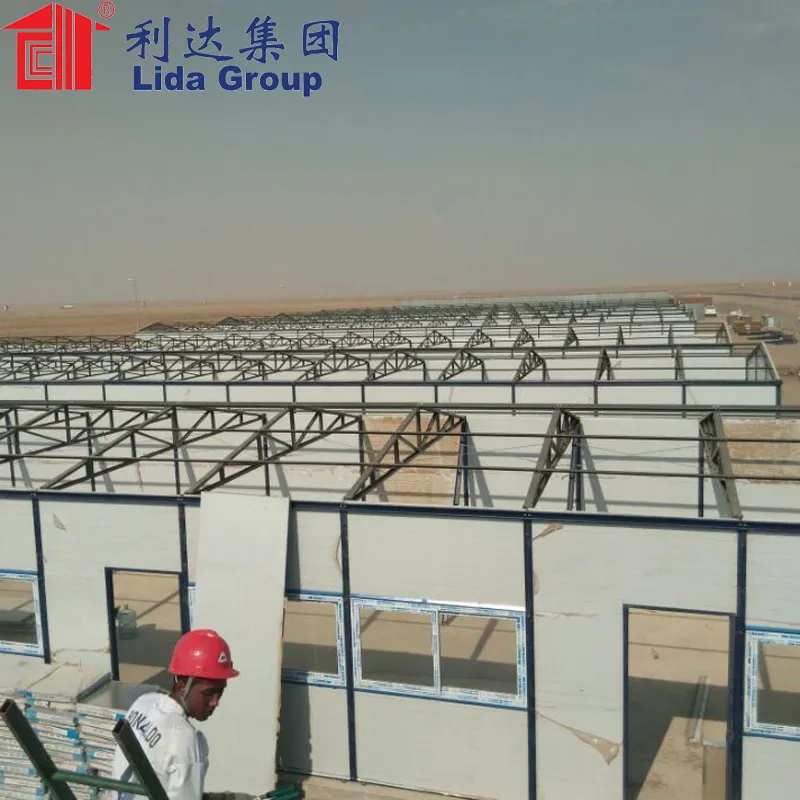

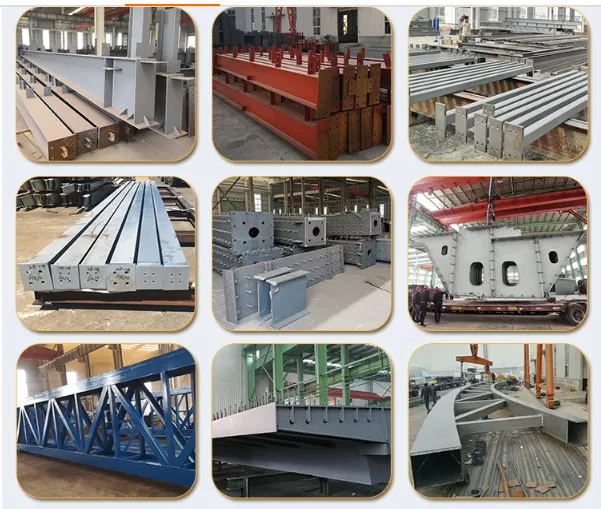

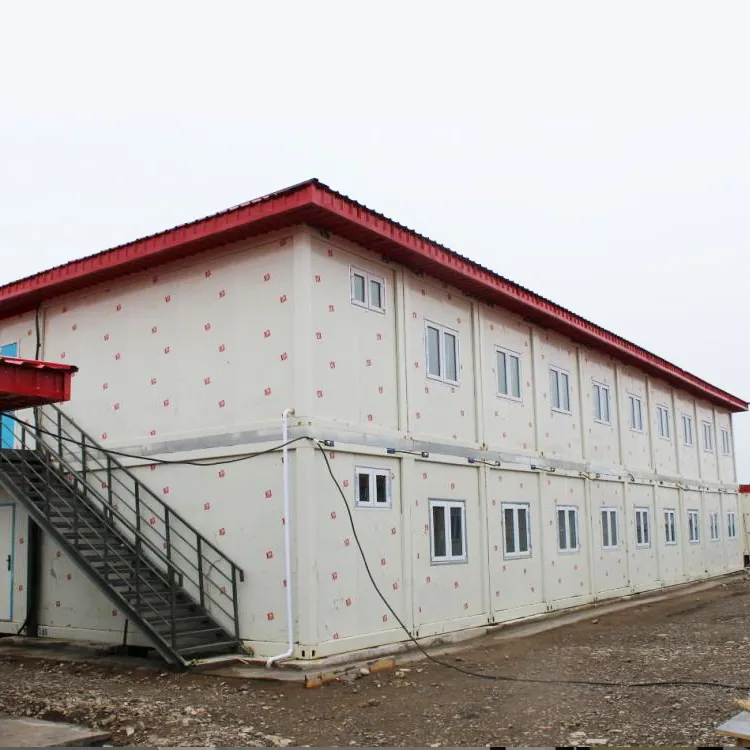

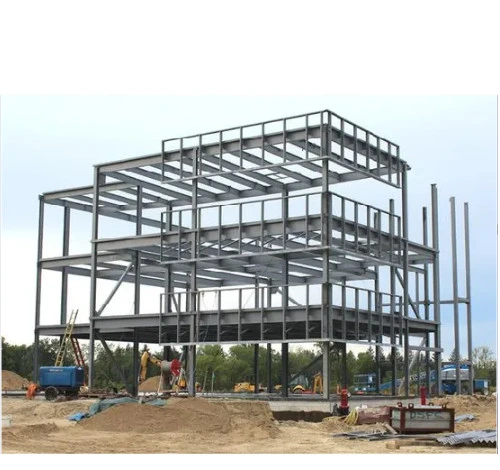

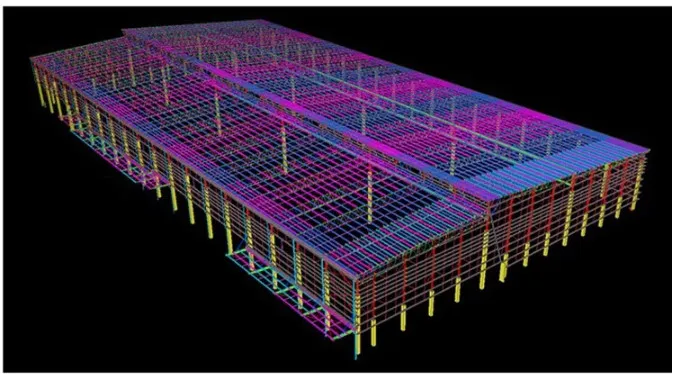

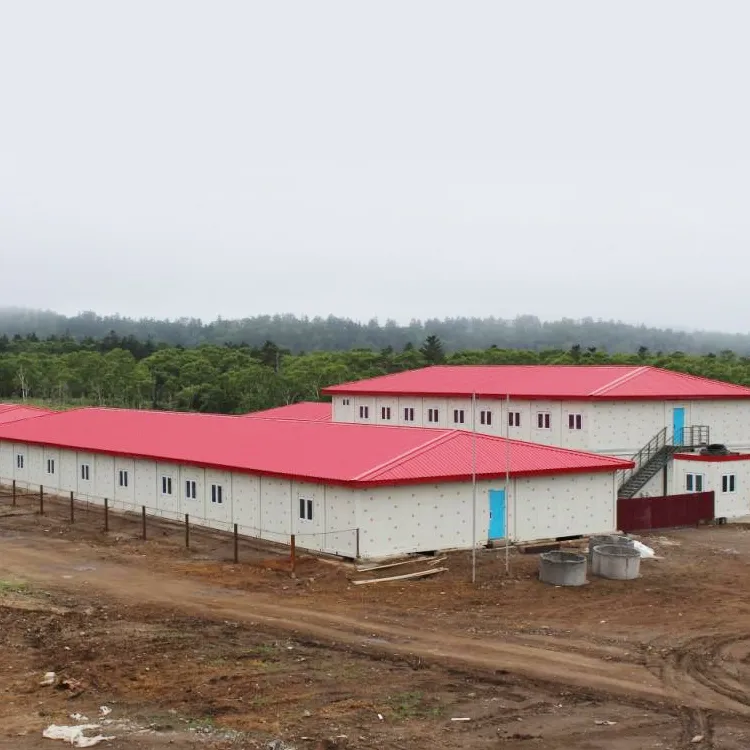

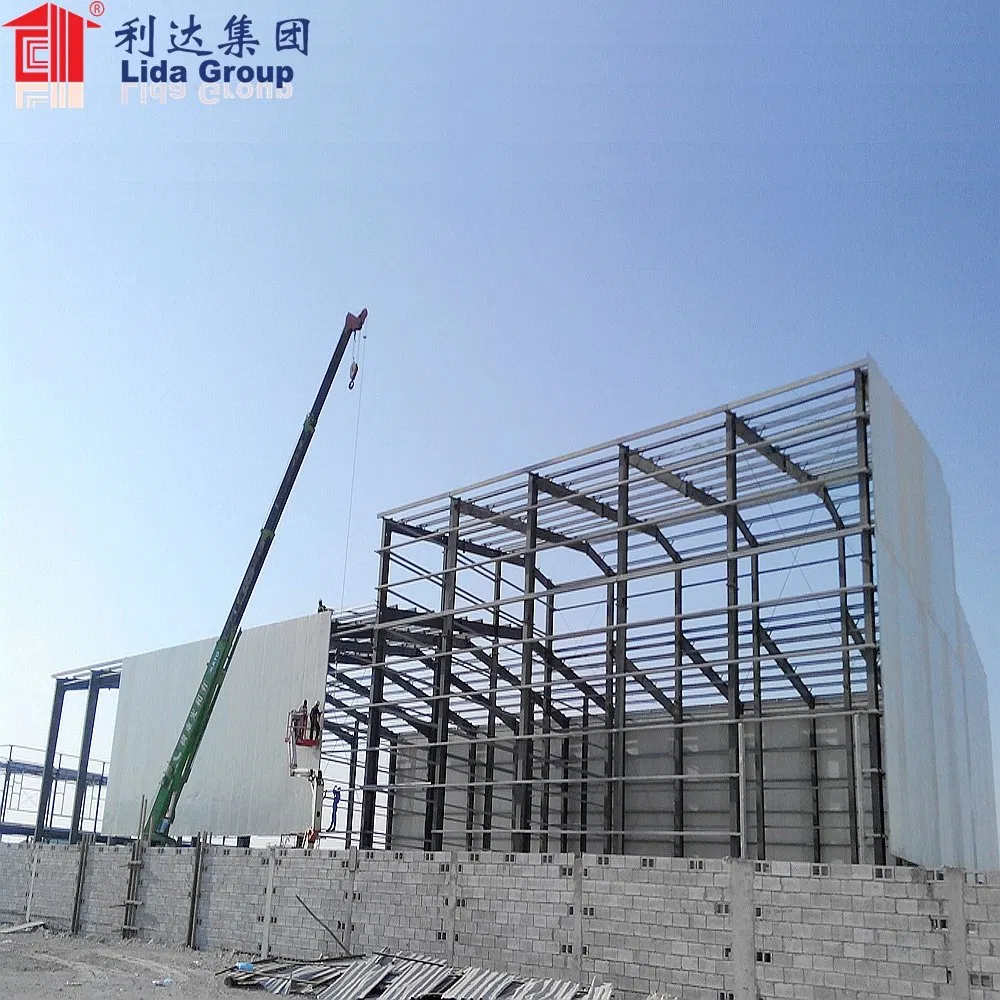

Project Showcase & Materials

Frequently Asked Questions

1. What is the expected lifespan of a prefab steel school building?

Our steel structure buildings are designed for long-term durability, with a service life typically exceeding 50 years under normal maintenance conditions.

2. Are these buildings resistant to earthquakes and extreme weather?

Yes, the high-strength steel frame (Q235/Q345) provides excellent seismic resistance. The structures are also engineered to withstand specific local wind and snow loads.

3. How fast can a classroom building be installed?

Because components are prefabricated, on-site assembly is significantly faster than traditional construction. A standard classroom block can often be erected in a few weeks.

4. Can the insulation materials be customized for different climates?

Absolutely. We offer various insulation options including EPS, Fiberglass wool, Rockwool, and PU sandwich panels to meet the thermal requirements of your specific region.

5. What maintenance is required for the steel structure?

The steel is galvanized or painted to prevent rust. Routine inspections of the roof drainage and occasional cleaning of the wall panels are usually sufficient to maintain the building.

6. Is it possible to expand the building in the future?

Yes, one of the main advantages of steel structures is their flexibility. The modular design allows for relatively easy expansion or modification of the building layout.
