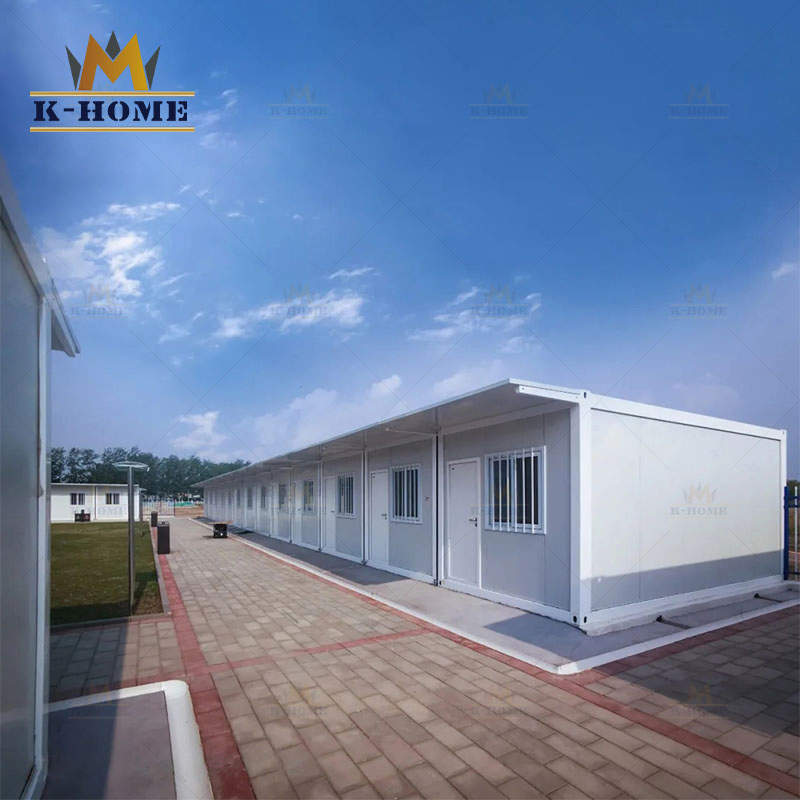

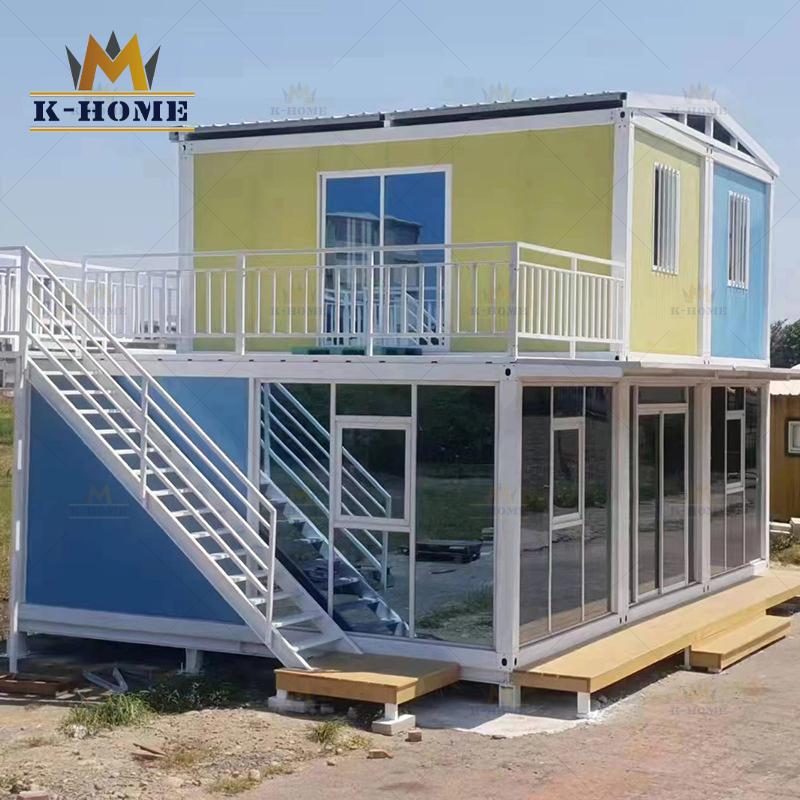

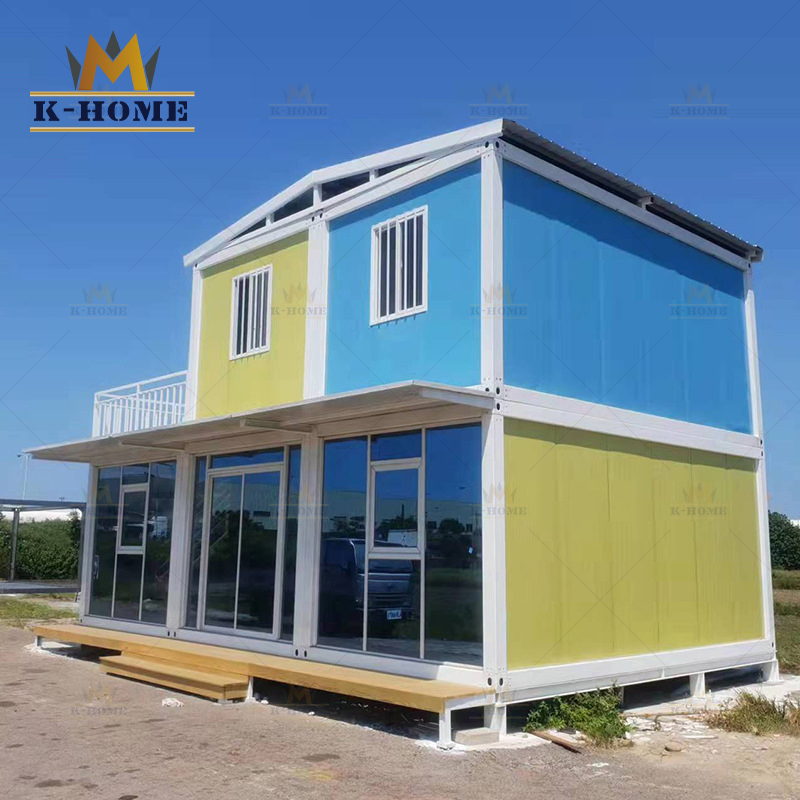

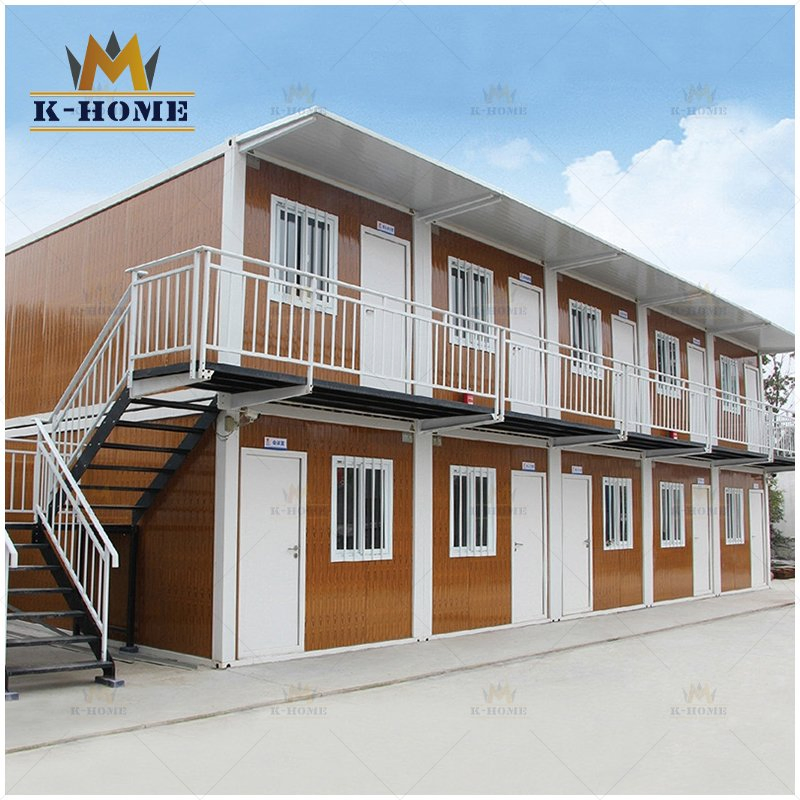

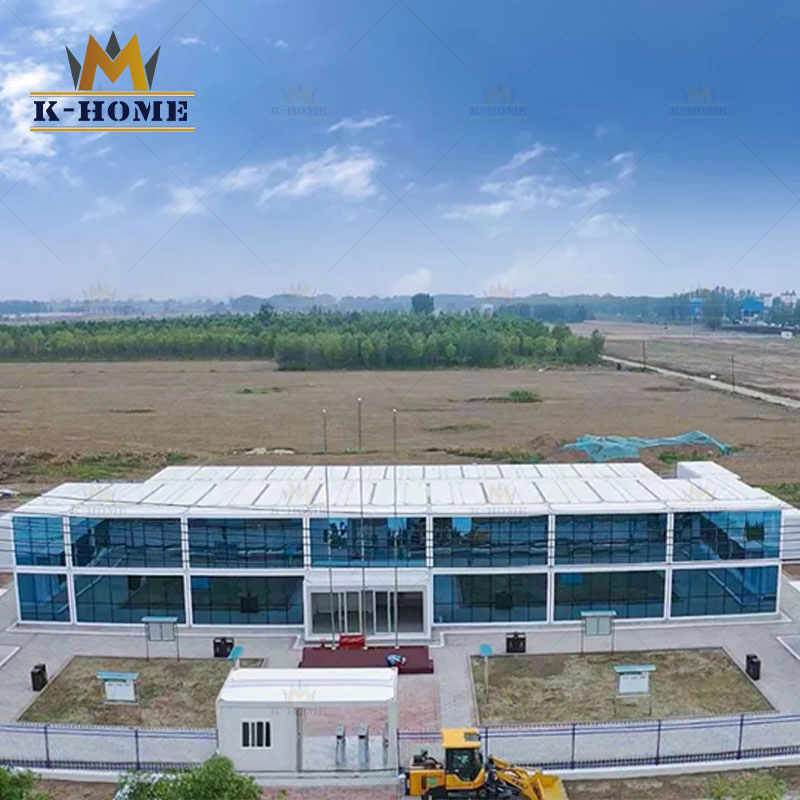

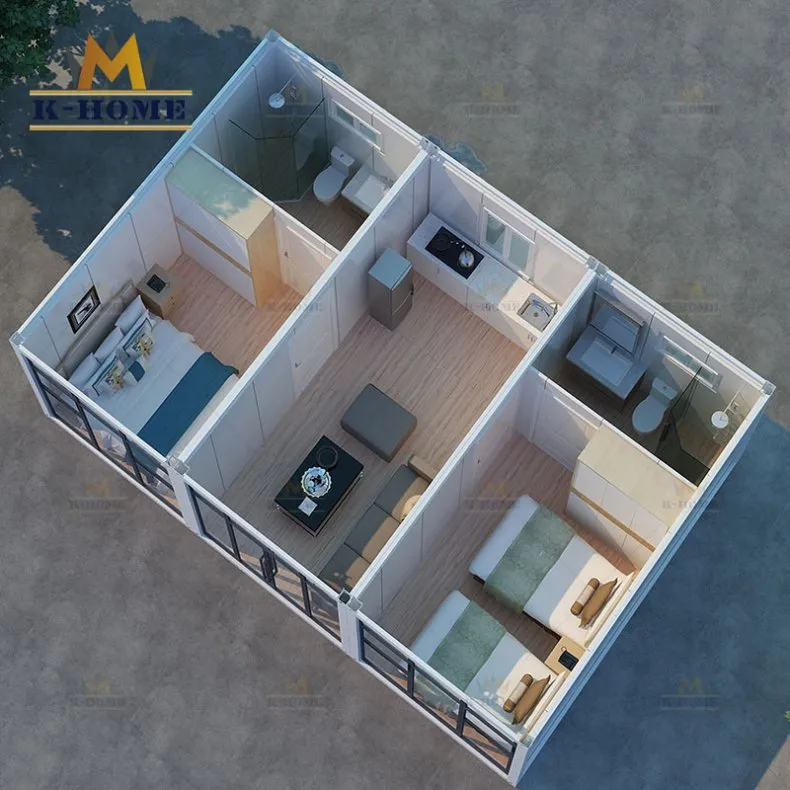

Portable Affordable Housing Units
Portable Affordable Housing Units are steadily gaining popularity as a sustainable, affordable, and flexible housing option. Modular construction offers numerous advantages over conventional housing, such as faster build times, increased mobility, and eco-friendliness.
One of the main reasons why modular living container homes are becoming increasingly popular is their cost-effectiveness. Shipping containers can be obtained at a lower cost than traditional building materials, making them an excellent choice for those looking to build an affordable home. Additionally, the modular design allows for greater flexibility in construction—individual units can be joined together, expanded, or relocated as needed.

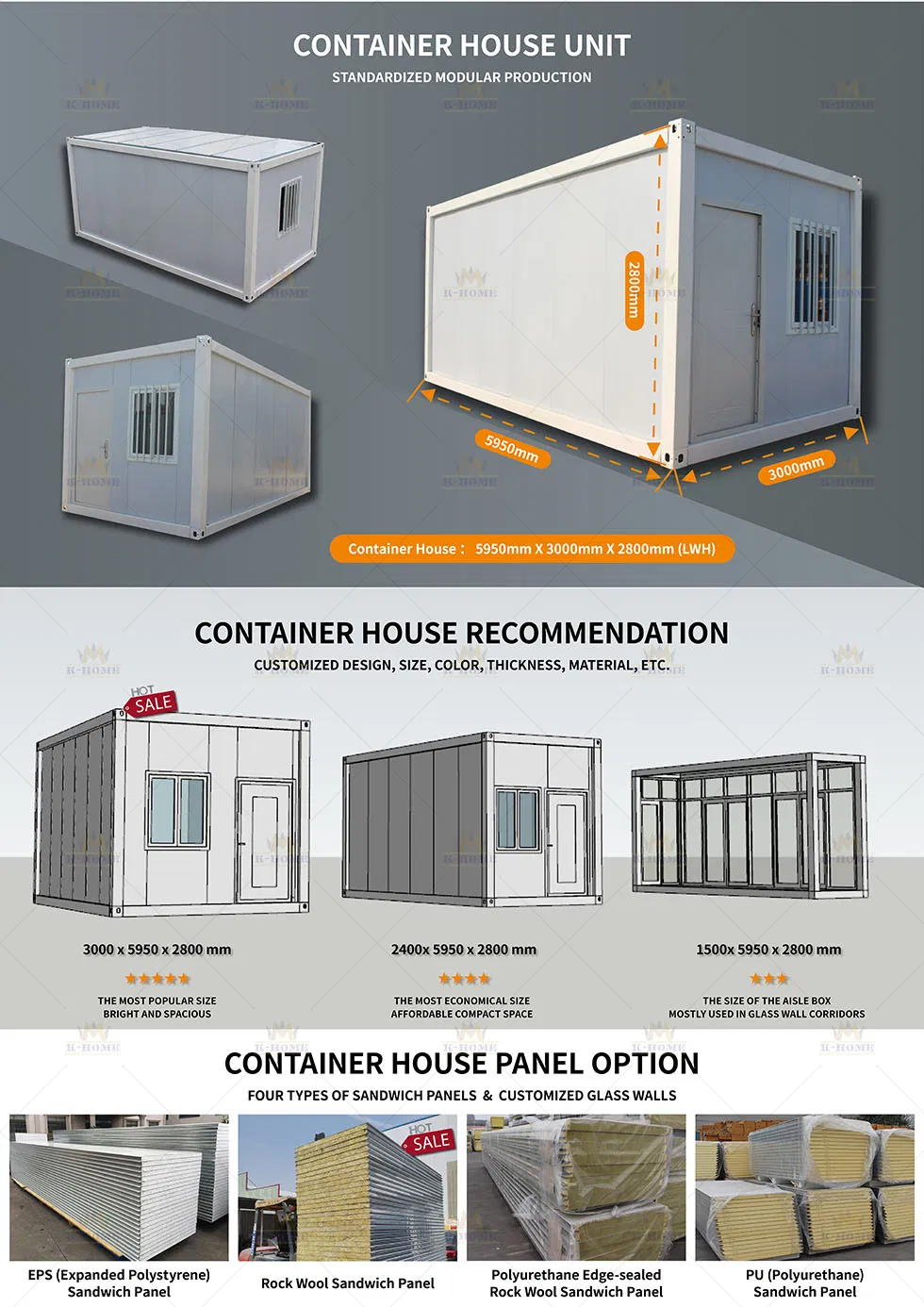

| Size | 6000(L) X 3000(W) X 2800(H) mm |
| Wall & Roof | 50mm EPS sandwich wall panel or customized |
| Window & Door | PVC sliding window and steel door |
| Flooring | MGO board and PVC carpet |
| Install time | 2 units by 3 workers in 1 day |
| Resistance | Earthquake Grade 8 |

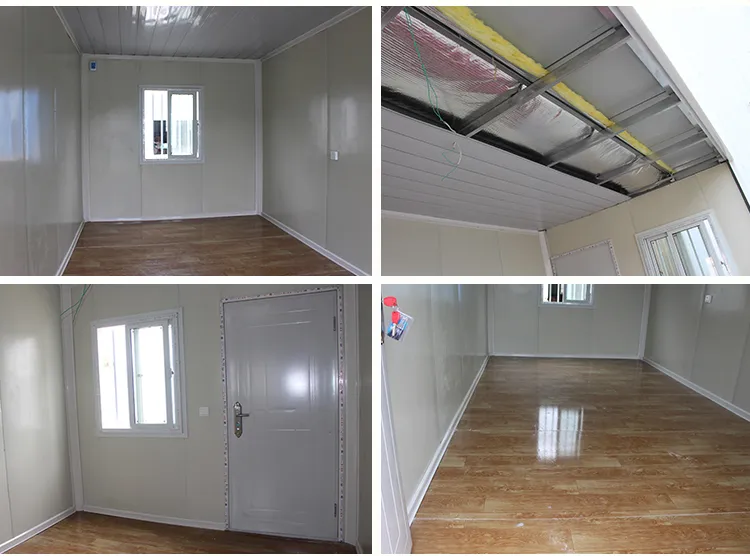

| Part | Component | Specification |
|---|---|---|
| Roof System | Frame & Insulation | Q235 galvanized fitting; 50mm glass wool; 0.4mm pre-coated steel sheet |
| Floor System | Structure | 3mm Galvanized Steel main structure + 15mm chipboard + PVC leather |
| Column | Support | 2.5mm Shaped Galvanized Steel |
| Wall System | Panel | 50mm EPS Foam Sandwich Panel (0.35mm steel thickness) |
| Openings | Door & Window | Steel door (2000*980mm); Aluminum alloy sliding window with double glass |
| Electric | Systems | LED light, Sockets, Air-switch, and safety protection box |
Consider your lifestyle and occupancy requirements to determine layout and feasibility.
Choose specialists who understand building codes and safety requirements.
Select a structurally sound unit that meets your environmental and durability needs.

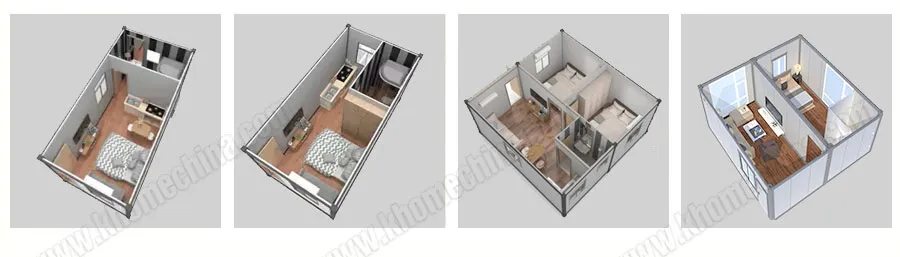

Plan the placement of windows, doors, utilities, and living spaces like kitchen and bedrooms.
Install critical insulation and essential systems including electricity, plumbing, and ventilation.
