Ruifa Modular House
Ruifa Modular House

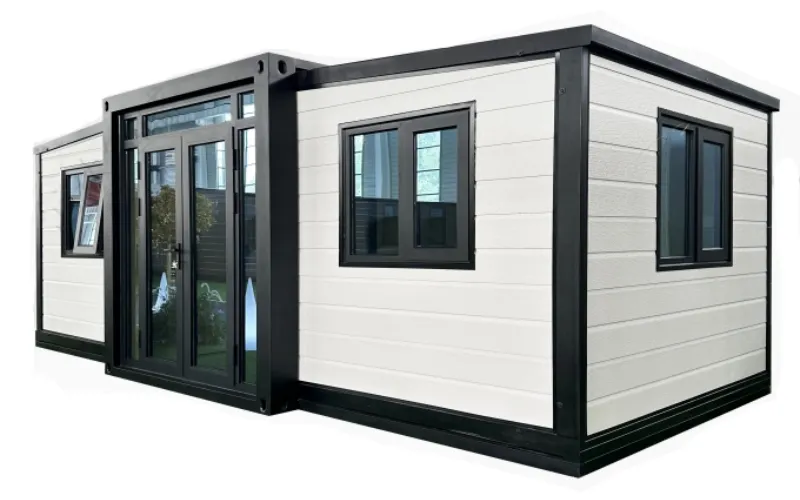

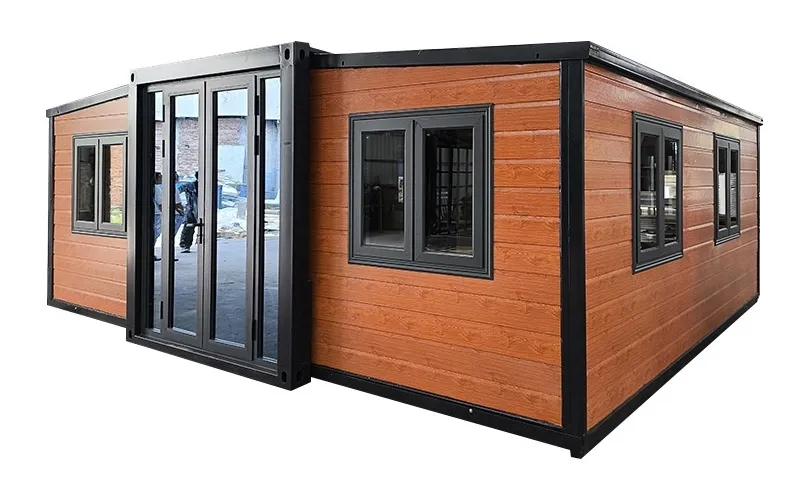

| Product Model | Expanded Size (mm) | Folded Size (mm) | Floor Area | Capacity |
|---|---|---|---|---|
| 10 Feet | L2950*W6300*H2480 | L2950*W2200*H2480 | 18.5m² | 2-4 People |
| Mini 20 Feet | L5900*W4800*H2480 | L5900*W700*H2480 | 27.5m² | 2-4 People |
| 20 Feet Standard | L5900*W6300*H2480 | L5900*W2200*H2480 | 37m² | 2-4 People |
| 30 Feet | L9000*W6220*H2480 | L9000*W2200*H2480 | 56m² | 3-6 People |
| 40 Feet | L11800*W6220*H2480 | L11800*W2200*H2480 | 72m² | 3-6 People |
| Structure Part | Specifications | |
|---|---|---|
| Main Frame | Top/Bottom Beams | 80*100*2.5mm Square tube / 2.0mm Bending parts |
| Steel Column | Bending parts 2.0mm | |
| Protective Coating | Electrostatic spray molding | |
| Wall & Roof | External Roof | T50mm EPS color steel plate + corrugated veneer |
| Wallboard | T65mm EPS color steel plate | |
| Ground | Center Floor | 18mm thick fireproof cement fiber floor |
| Side Floor | 18mm thick Bamboo plywood | |
| Electrical | Circuit System | 32A leakage protector, 220V, 50HZ |
| Lighting | Standard LED ceiling lamps | |
5 inexperienced workers can complete the expansion in 40 minutes. It can be easily hoisted on a tractor for rapid transportation.
Prefabricated in the factory to avoid construction waste and promote rational use of materials.
High-quality building materials ensure a safe lifespan of more than 15-20 years with proper maintenance.
Significantly cheaper than traditional buildings with high resale and recycling value.
Flexible design that can be customized to meet individual aesthetic and functional needs.

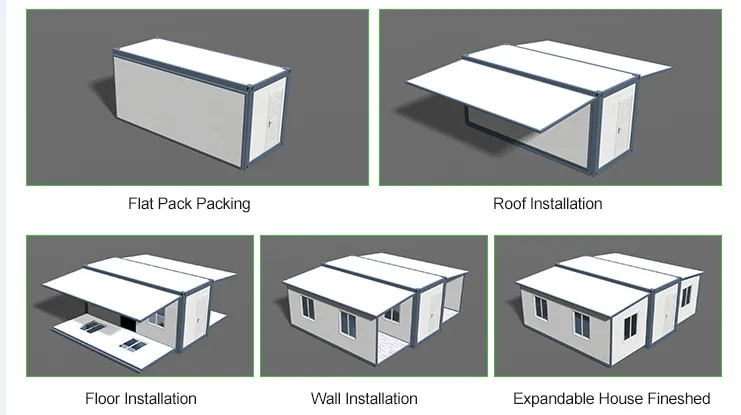

A: A standard three-in-one container house can be expanded by 5 workers in approximately 40 minutes. The process is significantly faster with experienced installers.
A: With high-quality galvanized steel and proper maintenance, these houses can be used safely for over 15 to 20 years.
A: Yes, the house uses EPS/PUR/Rockwool sandwich panels and galvanized steel structures which provide excellent fireproof and waterproof properties.
A: Yes, they can be equipped with new energy generation systems combining wind and solar power with battery storage for daily appliances.

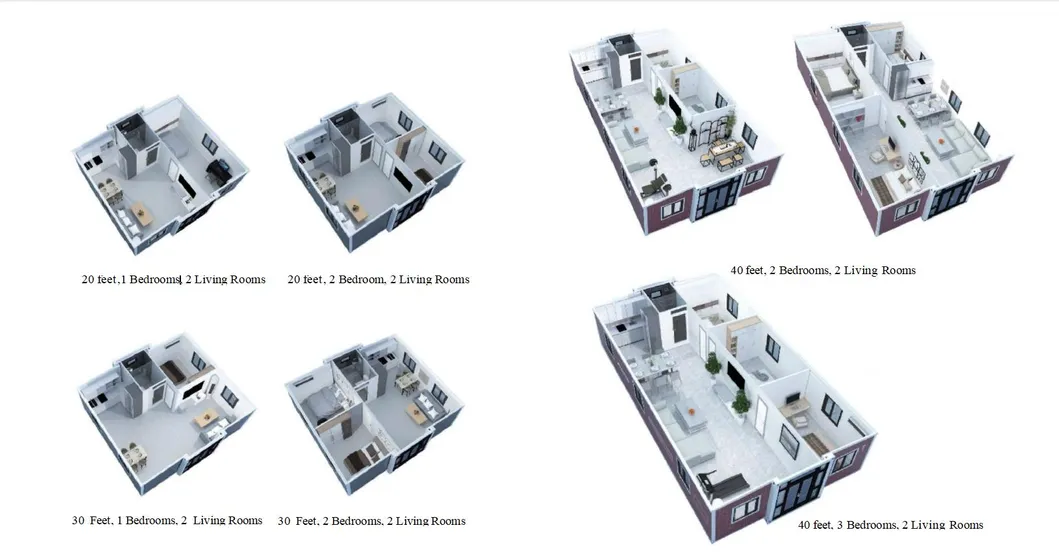

A: We offer various sizes including 10ft, 20ft (mini and standard), 30ft, and 40ft configurations to meet different space requirements.
A: Yes, the house can be folded back and hoisted onto a tractor or container truck just like a standard shipping container for easy relocation.
